The Shimadzu CLAM-system is a fully automated sample preparation module for LCMS. The CLAM-system features special vials with septum for handling internal standard solutions. The use of vials with septum prevents internal standards from evaporating. By using the micro „cup-on“ tubes the dead volumes of calibrator solutions and QC sample are improved and the running costs are reduced.

Kits, Glass Vials with Screw Neck

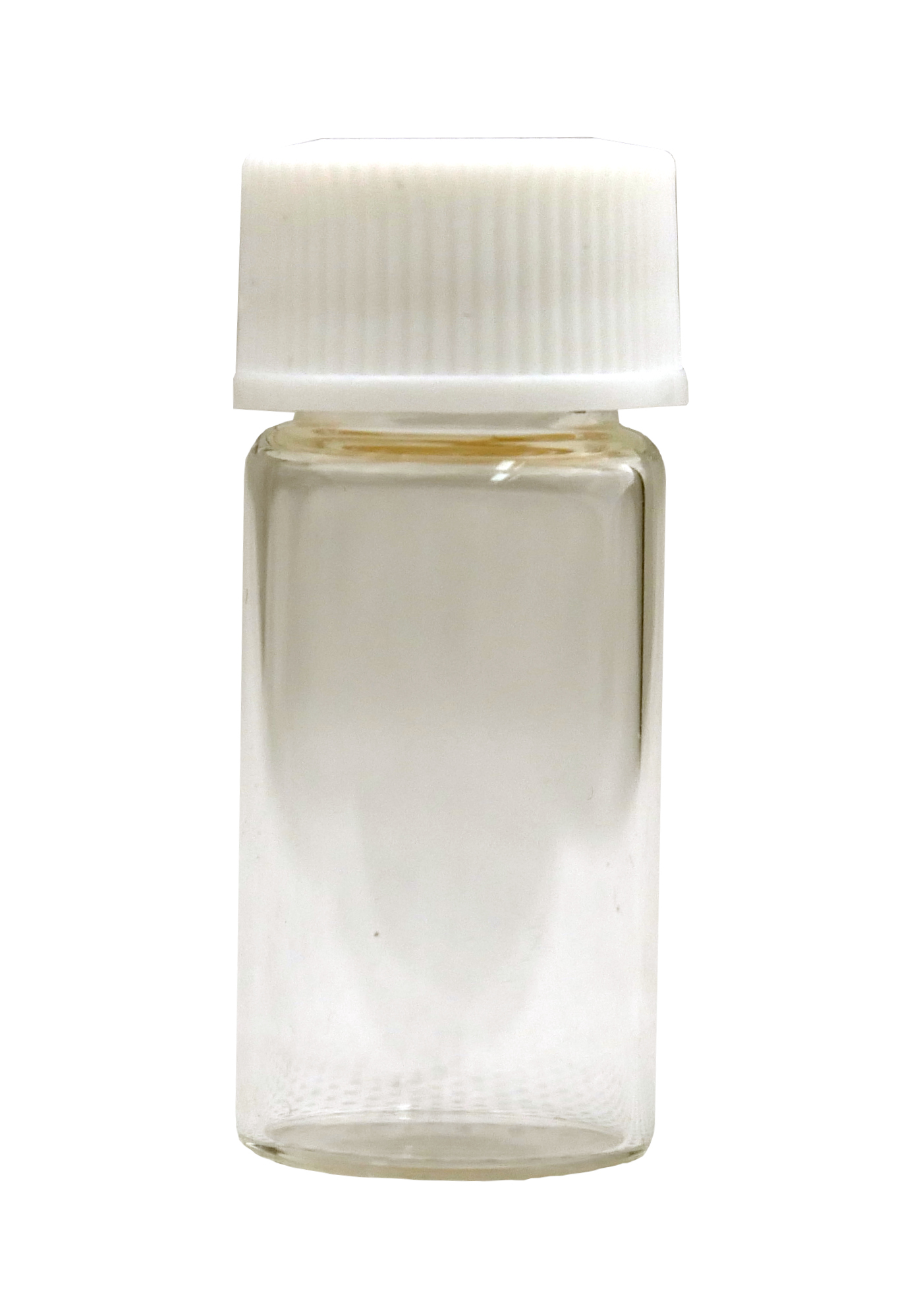

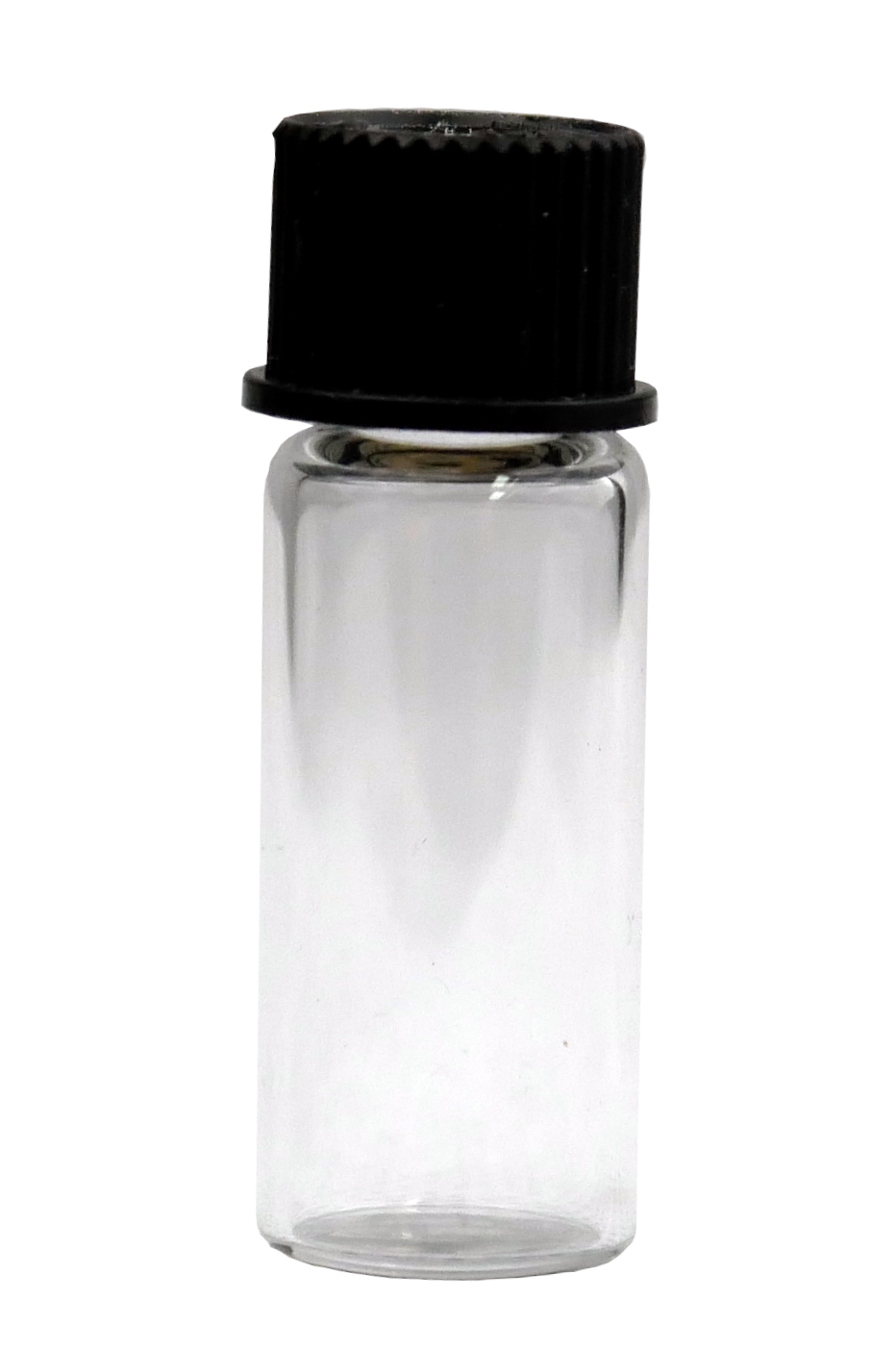

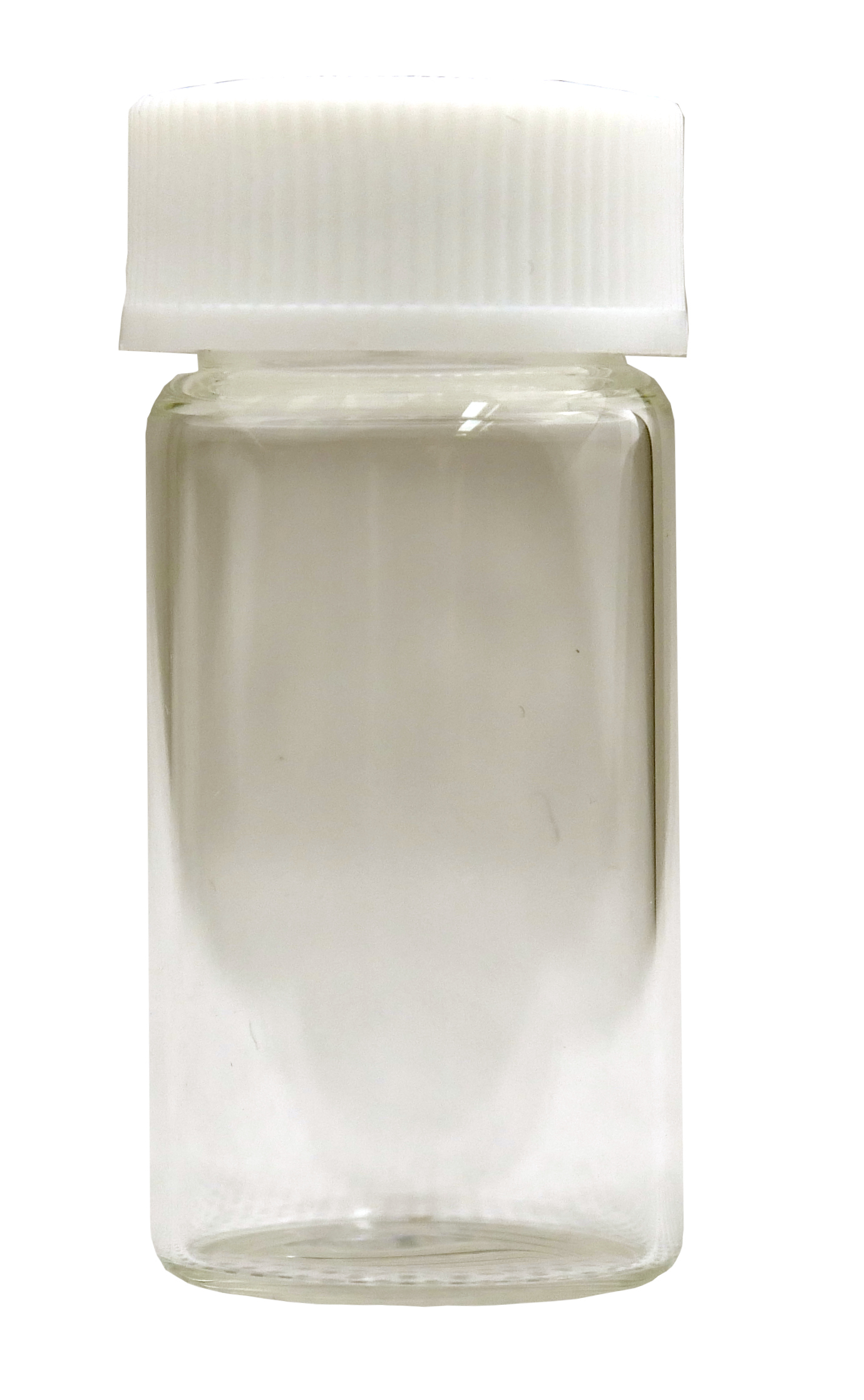

P/N	228-16965-91	241-16619-43	038-00199-06	223-81340-41
Volumen [ml]	1.5	6.0	12.0	12.0
Specification	with dedicated slit septum for internal standard	with dedicated slit septum for internal standard	vial with dedicated cap for detergent or dilution	with dedicated septum and cap for methanol or acetonitrile
Material, color	glass, clear	glass, clear	glass, clear	glass, clear
Neck	screw neck	screw neck	screw neck	screw neck
Bottom	flat	flat	flat	flat
Dimension [mm]	11.6 x 32.0	18.0 x 40.0	24.0 x 50.0	24.0 x 50.0
For CLAM	2030	2030	2000/2030	2030
Content [pcs.]	100	50	1	1

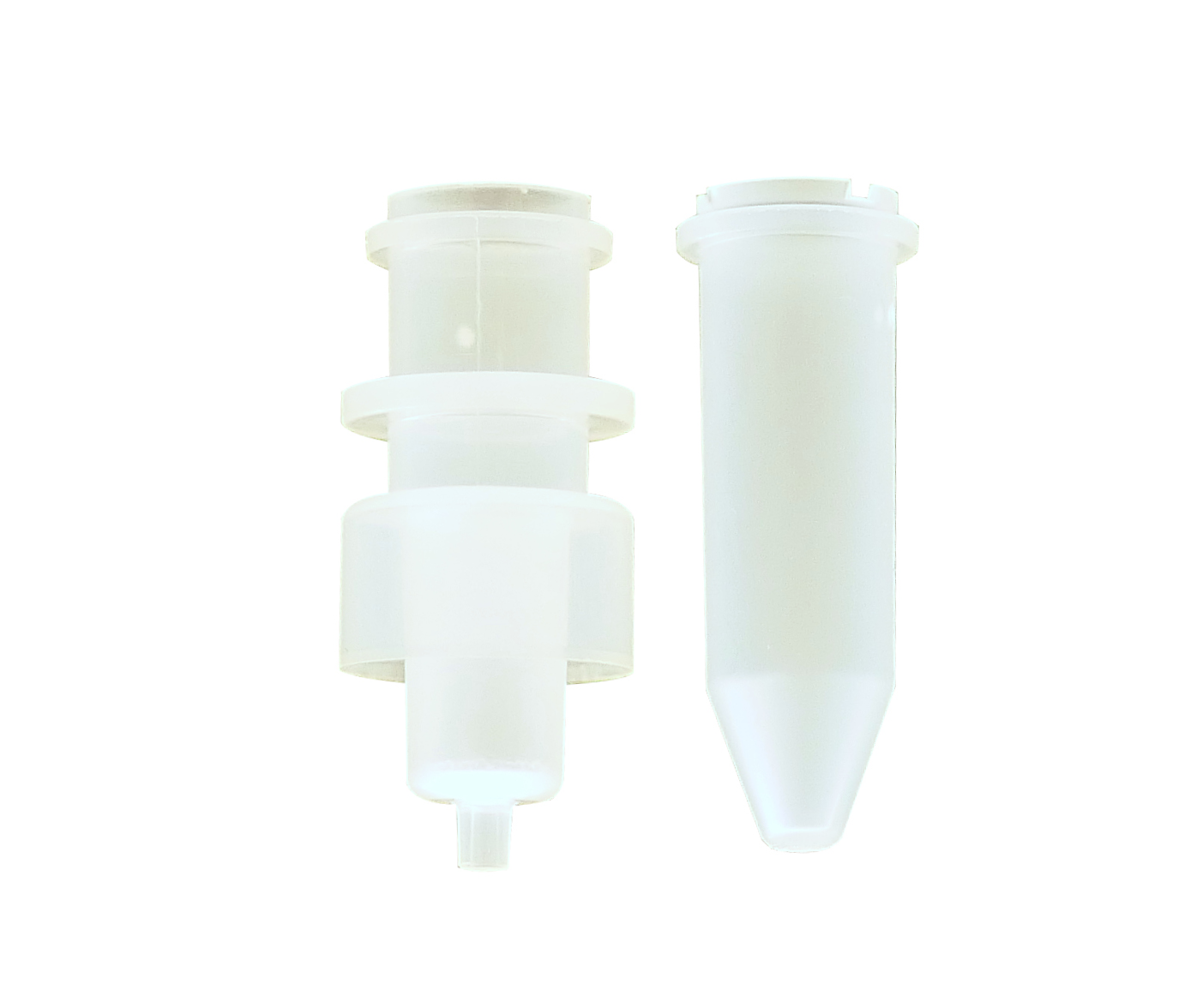

Filtration and Collection Set

Filteration and collection vial are sold as a set: Pore size of filter = 0.45 µm

	Filtration vial    Collection vial
P/N	241-16593-41	241-16593-42	241-16593-43
Content (set per pack)	100	500	2000

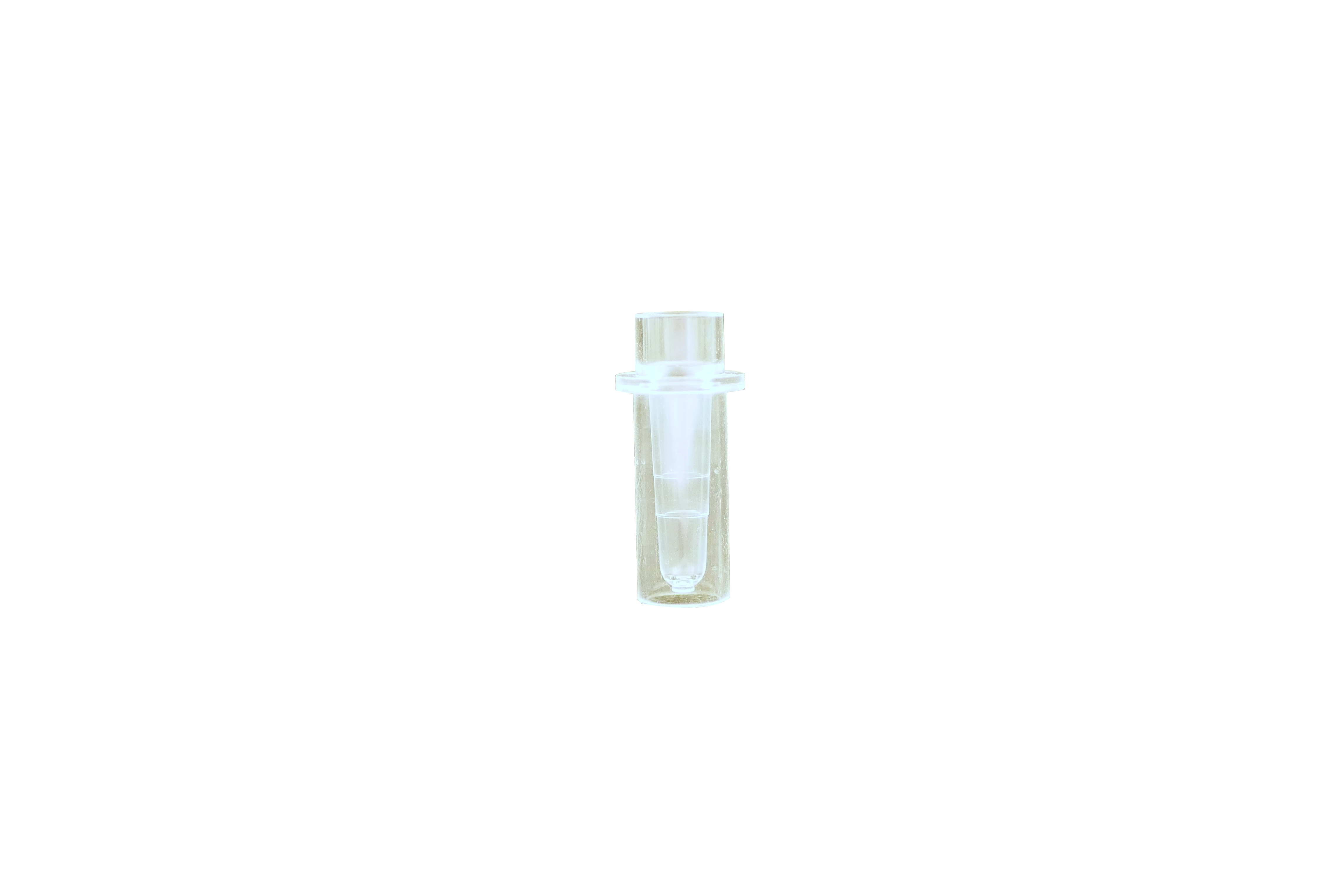

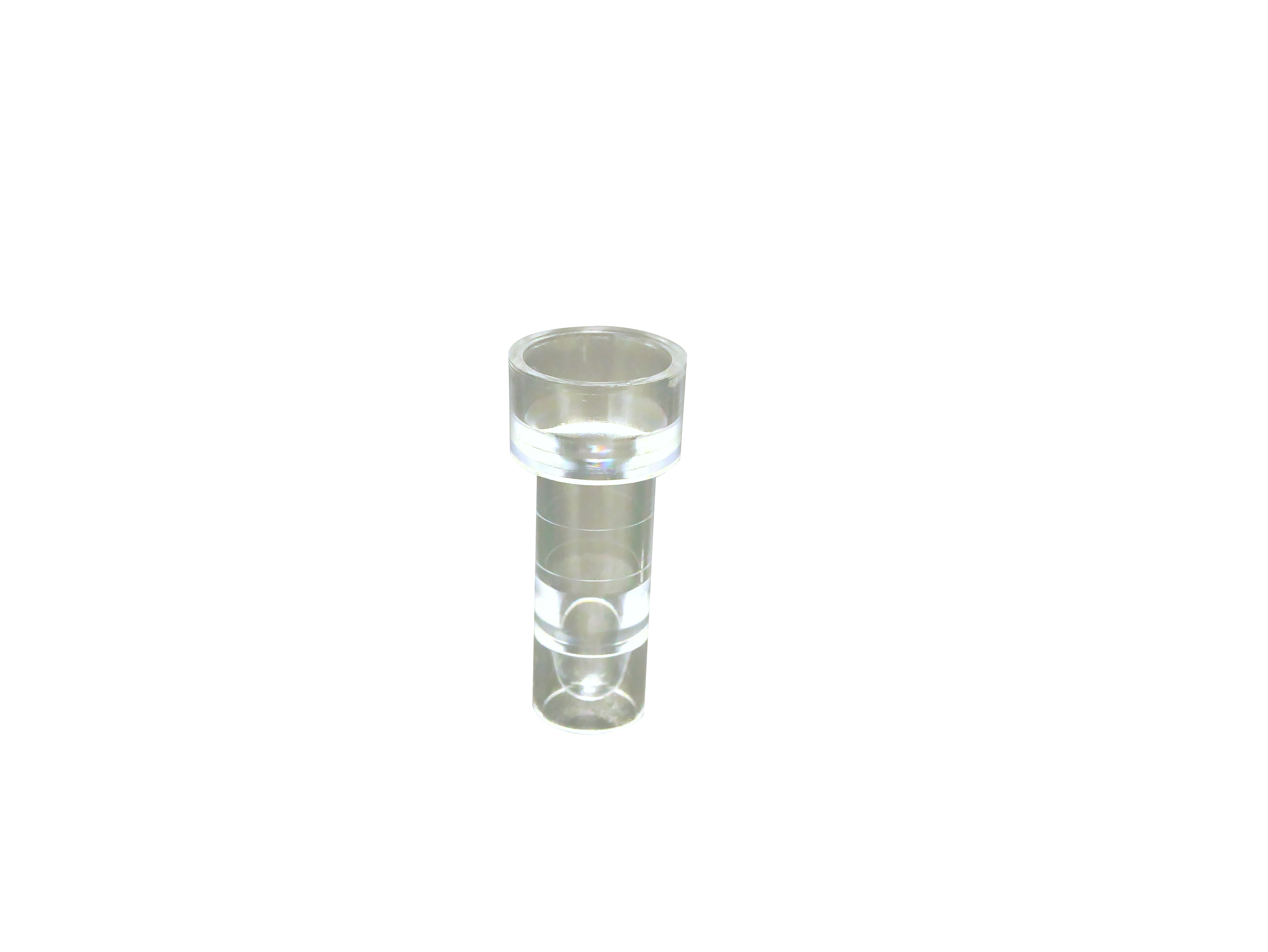

P/N	038-00531-01	241-94045-01
Volumen [ml]	2.0	0.5
Material, color	PS, clear	PS, clear
Neck	straight	straight
Bottom	conical	conical
Dimension [mm]	12 x 38	17 x 38
For CLAM	2000/2030	2000/2030
Content [pcs.]	1000	1000

Cup-on-Tube

Sample or calibrators are contained in micro tubes. The micro tube is inserted in test tube = cup-on-tube. The cup-on-tube is placed in dedicated sample rack. This configuration helps to achieve very small dead volume and enables the user to store away precious samples and place a barcode on it.

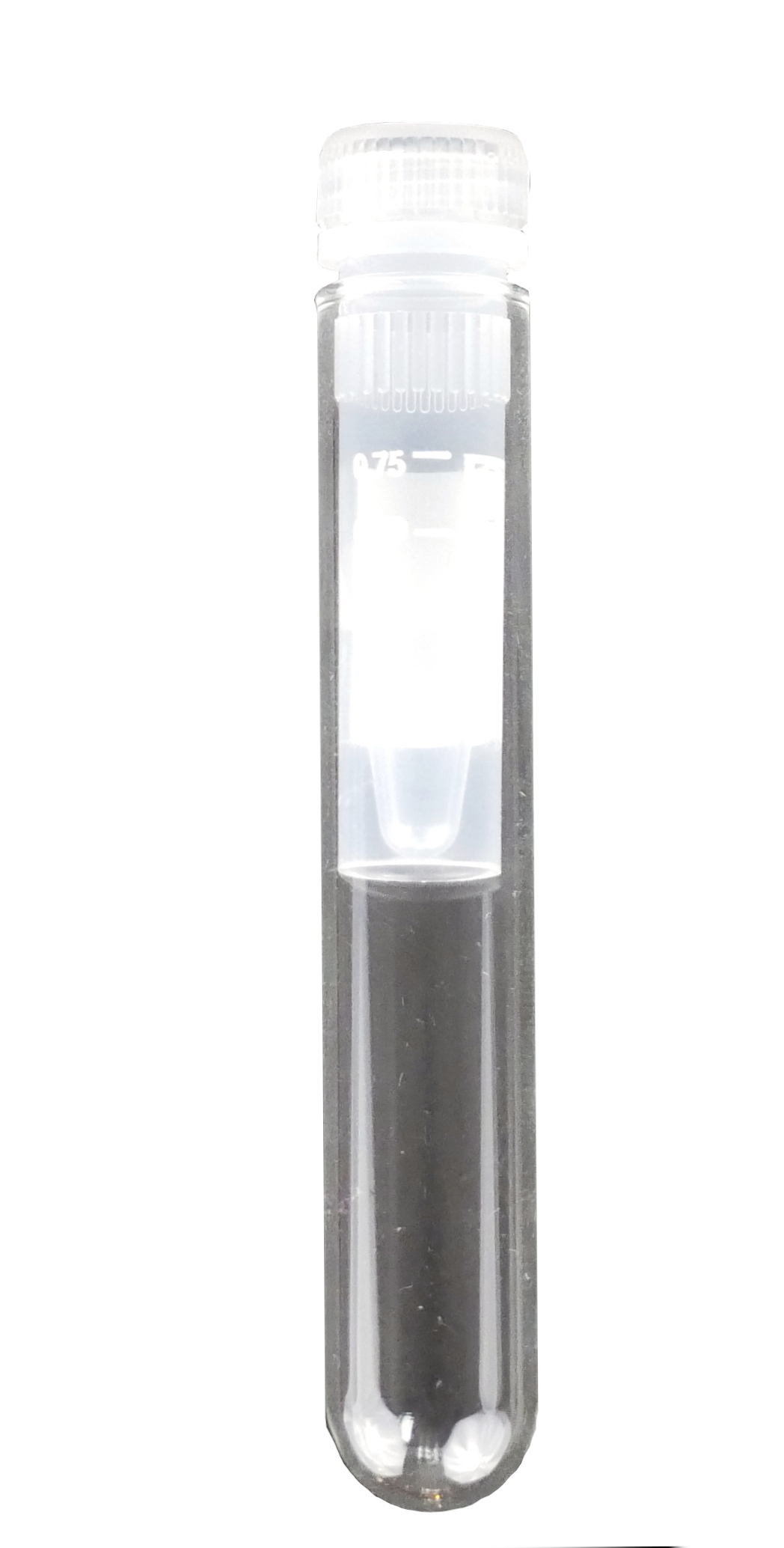

CLAM «Cup-on-tube» = Test tube + Micro tube

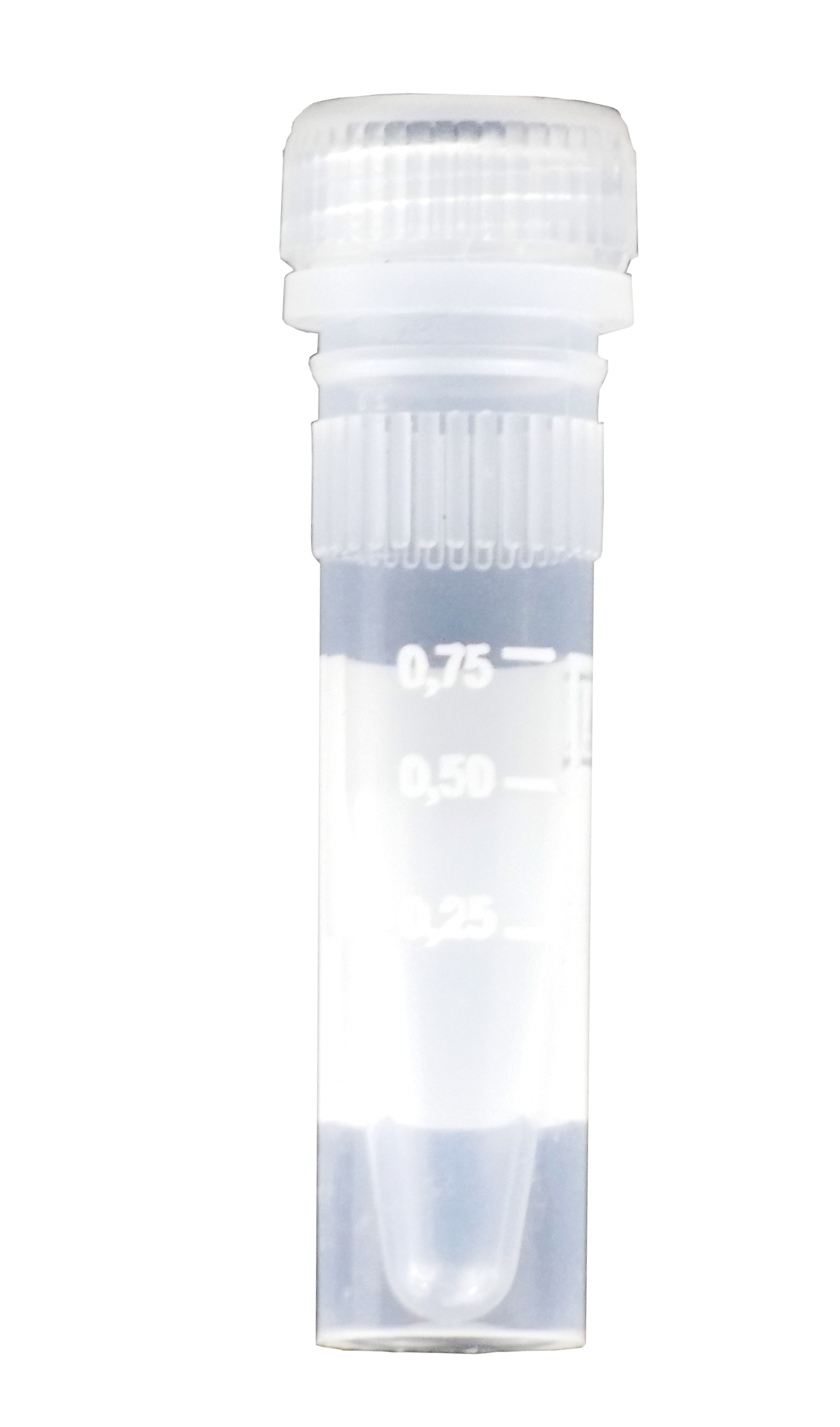

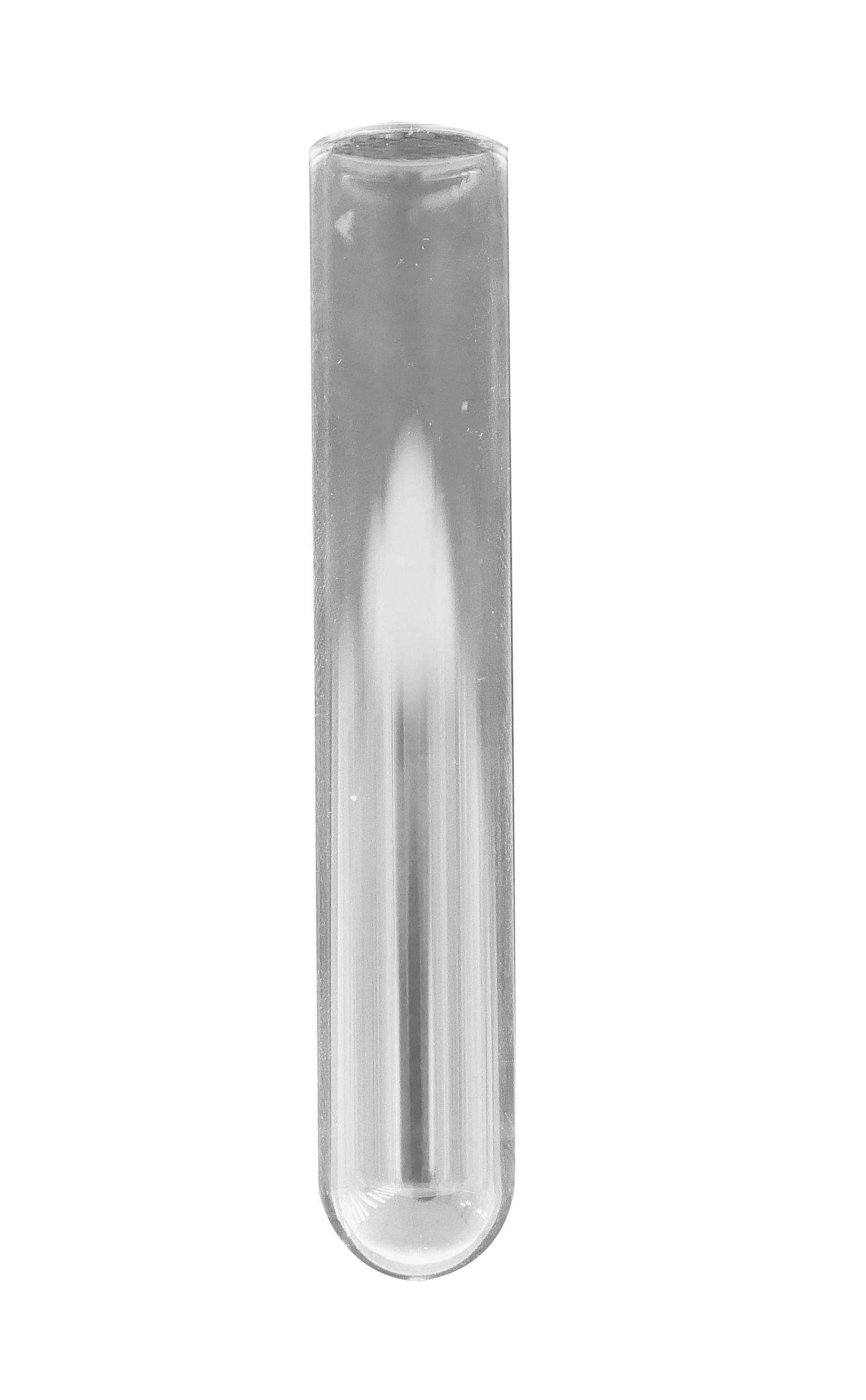

P/N	046-00342-01	038-00051-68
Volumen [ml]	5.0	1.5
Material, color	PP, clear	PP, clear
Neck	straight	screw neck
Bottom	round	conical
Dimension [mm]	75 x 13	44 x 11
For CLAM	2030	2030
Content [pc.]	1	1
